OMTech Solis Duo: three models compared.

Solis Duo combines a fiber laser for metal with a blue diode for suitable wood, leather and dark acrylic. The entry model uses manual focus. Paying for the 30W model adds autofocus; the 50W model also gives you a stronger diode. None of those upgrades makes the main engraving area larger.

We have not tested Solis Duo. OMTech shopping links and xTool links are paid; we may earn a commission at no extra cost to you.

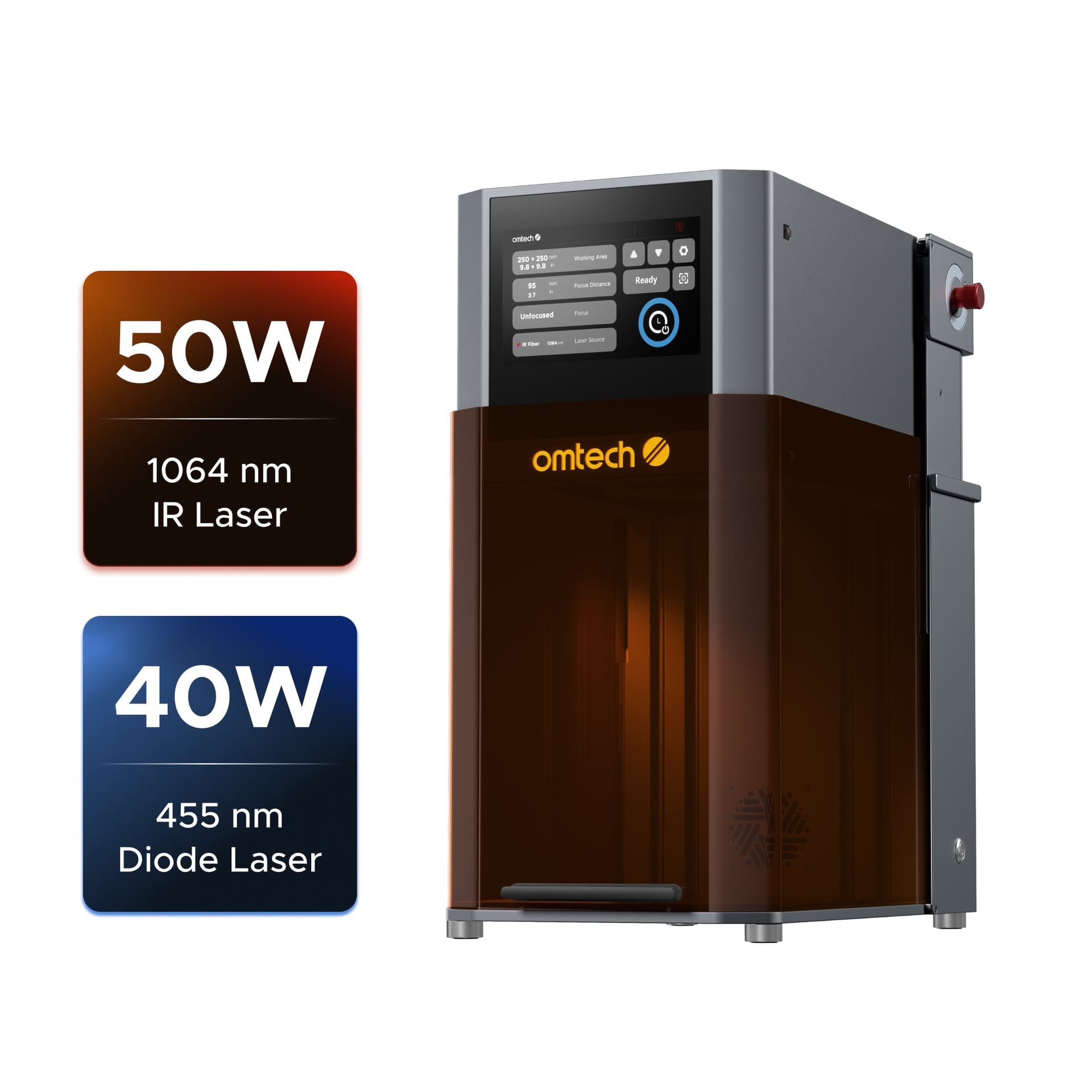

OMTech Solis Duo 50W fiber and 40W diode official product image
20W fiber + 20W diode30W fiber + 20W diode50W fiber + 40W diode

Solis Duo pairs fiber and blue diode lasers for metal and suitable nonmetal engraving. The 20W/20W model has manual focus; 30W/20W adds autofocus; 50W/40W raises both powers. All list a 250 × 250 mm main field. The manuals exclude LightBurn Photo Positioning and contradict the storefront’s Class 1 claim. We have not tested these machines.

Choosing a model

Pay for autofocus, more power, or both?

The three versions share a listed 250 × 250 mm main field. The change is how you focus and which laser powers you need.

OMTech Solis Duo 20W fiber and 20W diode manufacturer photograph
20W fiber + 20W diode · manual focus
OMTech Solis Duo 30W fiber and 20W diode manufacturer photograph
30W fiber + 20W diode · autofocus
OMTech Solis Duo 50W fiber and 40W diode manufacturer photograph
50W fiber + 40W diode · autofocus

OMTech photographs of the three exact source pairs. The metal landscape is illustrative; it is not a finish produced or tested on these machines.

  1. 20W + 20W: lowest purchase price

    We would start here if manual focus suits your work. You get both laser types and the same 250 mm square main field, with less fiber power than the other models.

    Main marking field
    250 × 250 mm
    Focus
    Manual
  2. 30W + 20W: adds autofocus

    This is the model to compare if you often change between objects of different heights. It also adds fiber power and a second field lens, while keeping the entry model’s diode power.

    Main marking field
    250 × 250 mm
    Focus
    Autofocus
  3. 50W + 40W: stronger fiber and diode lasers

    We would pay for this only if samples show a useful improvement on the metal and nonmetal jobs you make. It keeps the same main field, and the listing was still taking pre-orders when checked.

    Main marking field
    250 × 250 mm
    Focus
    Autofocus

Three models

What changes when you pay more?

Moving from 20W to 30W adds autofocus and more fiber power. The 50W model also increases diode power. The 320 × 320 mm workbed is larger than the laser's processing field; it does not enlarge the engraving area.

OMTech’s model comparison specifies manual focus for 20W + 20W despite autofocus wording elsewhere. Do not order the entry model expecting autofocus.

Open the exact focus, field-lens and model specifications
ModelMarking fieldFocus and featuresBefore choosing
Solis Duo 20W Fiber + 20W Diode20W fiber / 20W diodeOMTech specifications250 × 250 mm (9.8 × 9.8 in.)Manual focus; 16 MP camera listed by OMTech. The lower-power option for metal tags, jewelry, and gifts made from several materials. It has the same main marking area as the larger models.OMTech’s model comparison specifies manual focus, even though other text on the page mentions autofocus. Do not buy this model expecting autofocus.
Solis Duo 30W Fiber + 20W Diode30W fiber / 20W diodeOMTech specifications250 × 250 mm; 150 × 150 mm with the second field lensAutofocus; 16 MP camera listed by OMTech. Adds autofocus and more fiber power while keeping the same 20W diode as the entry model.The two areas belong to interchangeable field lenses, not two marking areas available at once. The conveyor is a separate package choice.
Solis Duo 50W Fiber + 40W Diode50W fiber / 40W diodeOMTech specifications250 × 250 mm; 150 × 150 mm with the second field lensAutofocus; 16 MP camera listed by OMTech. The only Solis model here that increases both sources: 50W fiber for metal work and 40W diode for suitable nonmetals.We have not measured how much faster this higher-power model finishes a job. On the date checked, it was listed for pre-order; see the shipping details below.

Materials

What can you make with it?

1064 nm fiber

Metal tags and jewelry

Depth changes the job

Compare a finished name tag with the depth of relief work you need. Ask how long the same metal sample takes.

  • Supported metal marking and engraving
  • Compare depth and finish before more power
Read the material guidance

The 1064 nm fiber laser marks and engraves supported metals. A name on a tag needs a different depth from a relief carving. Compare finished samples and the time they took before paying for more power.

455 nm blue diode

Suitable wood, leather and dark acrylic

Identify the blank

Choose by the material and coating, not just its color. The manuals exclude transparent materials such as clear acrylic.

  • Suitable nonmetal engraving
  • No clear-acrylic assurance
Read the material guidance

The 455 nm diode engraves suitable nonmetals. Check what the blank and any coating are made from before using it. The manuals exclude transparent materials such as clear acrylic.

A different machine

Sheet cutting or fine glass work

CO₂ or UV

Compare a CO2 cutter for plywood and clear-acrylic sheets, or a UV source for supported fine glass marking.

  • CO₂: sheet-cutting comparison
  • UV: glass-marking comparison
Read the material guidance

We would compare a CO2 cutter for plywood and clear-acrylic sheet cutting, or a UV laser for fine glass marking. Those materials call for a different machine from this fiber-and-diode engraver.

Compare OMTech laser types →

Software and safety

LightBurn features and laser safety

Camera placement

Choose software by the feature you need

No Photo PositioningIn LightBurn, according to the linked manuals

LightBurn compatibility does not include Solis Photo Positioning. Check the camera tools in OMTech Lab before choosing your workflow.

Read the manual's software distinction

Solis camera positioning is not supported in LightBurn, according to its manuals.

The linked manuals list OMTech Lab and LightBurn, but explicitly exclude Photo Positioning in LightBurn. If you want to place designs using the camera, check which tools are available in OMTech Lab before choosing your software.

20W manual, printed p. 15

Safety classification

Confirm the supplied machine's requirements

Class 1 / Class 4The storefront and manuals conflict

The storefront comparison says Class 1 for all three models. The linked manuals call the machine Class 4 in their safety instructions. We cannot confirm Class 1 operation from those conflicting documents.

30W/50W manual, printed p. 4

Production comparison

Time a finished job

10,000 mm/sOMTech's maximum, not our measured output

Judge loading, fills, passes and material changes together. Maximum marking speed and accuracy figures do not establish your finished cycle.

Read the published speed and accuracy caveat

Maximum speed is only part of the job time.

OMTech lists 10,000 mm/s maximum marking speed and 0.002 mm marking accuracy. We have not measured either. Fine fills, repeated passes, material changes, and loading blanks all affect a finished job.

Other machines

Solis Duo, F1 Ultra, F2 Ultra, or UV?

F1 Ultra is the closest power match to the entry Solis. The dual-laser F2 Ultra pairs MOPA fiber with a diode; its single-laser version omits the diode. F2 Ultra UV uses a different wavelength for a different set of materials.

Official OMTech Solis Duo 30W fiber and 20W diode product photograph

Solis Duo: compare the larger main field

250 × 250 mm250 × 250 mm; 30W/50W models also list a 150 × 150 mm lens

Compare focus, camera software and field lenses across the three fiber-and-diode models. The checked listings do not identify them as MOPA.

Read the Solis model specifications →
Official xTool F1 Ultra product photograph

F1 Ultra: the entry power pairing

20W fiber + 20W diode220 × 220 mm; 145 mm internal height

The same source powers as entry Solis, with a smaller listed field and a different software and accessory system.

Read xTool’s F1 Ultra user guide →(paid link)
Official xTool F2 Ultra product photograph

F2 Ultra: compare MOPA pulse control

60W MOPA + 40W diode220 × 220 mm

The dual-laser version adds MOPA pulse control for metal finishes. Its color examples do not establish Solis results; the single-laser version omits the diode.

Explore the F2 Ultra guide →
Official xTool F2 Ultra UV product photograph

F2 Ultra UV: change the wavelength

5W · 355 nm UV200 × 200 mm

Use its own material list for supported fine marking and glass applications. Fiber and diode settings do not transfer to UV.

Explore the F2 Ultra UV guide →
Open the full source, work-area and limitation comparison
MachineLaser sourcesListed work areaWhy compare it?Main difference
OMTech Solis Duo20W + 20W, 30W + 20W, or 50W + 40W fiber + diode250 × 250 mm; 30W/50W models also list a 150 × 150 mm lensMetal and nonmetal engraving when the larger listed field is useful.OMTech does not identify these Solis models as MOPA. The manuals exclude LightBurn Photo Positioning.
xTool F1 Ultra(paid link)20W fiber + 20W blue diode220 × 220 mm; 145 mm internal heightThe same laser power pairing as Solis 20W + 20W.A smaller engraving field, with different software, rotary and conveyor accessories.
xTool F2 Ultra (dual laser)(paid link)60W MOPA + 40W blue diode220 × 220 mmMOPA pulse control for metal finishes, plus a diode for suitable nonmetals.The single-laser version omits the diode. Its MOPA color examples do not show what Solis can do.
xTool F2 Ultra UV(paid link)5W, 355 nm UV200 × 200 mmFine UV marking, including supported glass applications.Uses one UV laser. Check its material list separately; fiber and diode settings do not apply.

US packages checked October 20, 2026

Packages with LightBurn, with or without a conveyor

These were OMTech’s US dollar prices before tax and any checkout charges. Each link opens the product page with that package selected. Prices and contents can change; we did not complete a checkout.

The “Check current package” links below are paid links. We may earn a commission at no extra cost to you.

  • All five US packages listed a LightBurn license on October 20. Check that it is still included in the package you order.
  • The 30W and 50W models each had a separate conveyor bundle. Rotary compatibility does not mean a rotary is included.
  • On October 20, the 50W + 40W listing said “Pre-Order Now”; both package titles said “Ships Nov. 15” without a year. That wording is a seller estimate, not a confirmed delivery date.

Sources checked

Product pages and manuals

OMTech’s product pages and manuals supply the package, software and safety details. The xTool user guides supply the comparison specifications. xTool links are marked as paid links.

FAQ

Solis Duo questions

Have you tested Solis Duo?

No. This guide compares OMTech’s published specifications, linked manuals, and US package listings checked October 20, 2026. It does not report our own engraving, cutting, camera-accuracy, or production tests.

What changes between the three Solis Duo models?

20W + 20W has manual focus. 30W + 20W adds autofocus and more fiber power while retaining a 20W diode. 50W + 40W increases both sources. All list a 250 × 250 mm main field; the 30W and 50W manuals also list a separate 150 × 150 mm field lens.

Is Solis Duo a MOPA laser?

The checked Solis listings describe fiber-and-diode sources, not a MOPA source. Do not assume the adjustable-pulse color-marking behavior of a MOPA machine such as xTool F2 Ultra applies to Solis.

Can I use the Solis camera in LightBurn?

OMTech lists a 16 MP camera and LightBurn compatibility, but the linked Solis manuals explicitly say Photo Positioning is not supported in LightBurn. Do not assume its camera placement features transfer from OMTech Lab to LightBurn.

Is a LightBurn license included?

All five US packages checked October 20, 2026 listed a LightBurn license. Check the contents of your order because packages can change. A rotary or conveyor is included only if your chosen package lists it.

Can Solis Duo engrave clear acrylic?

The linked manuals exclude transparent materials such as clear acrylic. Suitable dark or opaque acrylic may work with the diode, but that does not make clear acrylic suitable. For clear-acrylic sheet cutting, compare a CO2 laser.

Is Solis Duo Class 1?

OMTech’s product comparison says Class 1, but the linked manuals call the machine Class 4 in their safety instructions. We cannot confirm Class 1 operation while those documents disagree. Ask OMTech for the classification and operating requirements that apply to the machine it will supply.

Are the 360W and 500W figures laser output?

No. The specifications label those as overall rated electrical power. Laser output is listed separately: 20W/20W, 30W/20W, or 50W/40W. The two laser powers also should not be added into a single cutting-power figure.

How does Solis compare with xTool F1 Ultra or F2 Ultra?

F1 Ultra has 20W fiber and 20W diode sources with a 220 × 220 mm field. The dual-laser F2 Ultra has a 60W MOPA source and 40W diode; its single-laser version has the MOPA source only. Solis lists a larger 250 × 250 mm main field, but the focus, pulse control, camera software, and accessory systems differ.
